Stacked Pyramid Planter (ACQ Pressure-Treated Lumber)

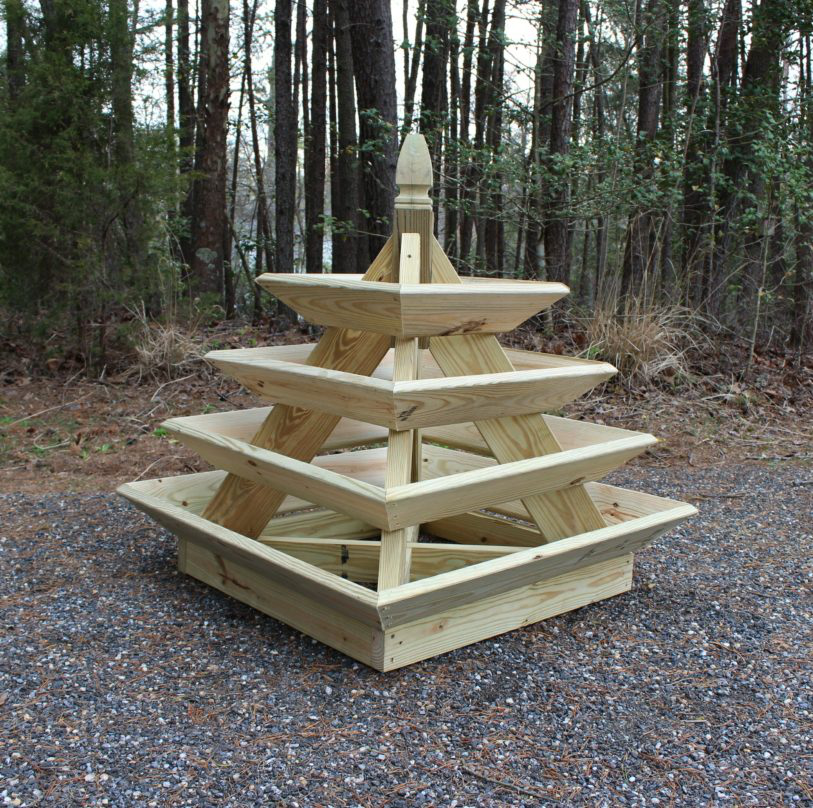

Build a stacked, four-tier pyramid planter using ACQ pressure-treated lumber: assemble a rectangular base frame, add X cross-braces, cut angled support legs to form a pyramid on a central 4x4 post, attach four shelf frames, cap the post, and fill tiers with garden soil.
Drawn by John MarcFOUNDING MAKER
Approved by Make It Use ItPublished Jul 21, 2026
What the build takes
- 2 in. x 6 in. x 8 ft. ACQ Pressure-Treated Lumber×2
- 5/4 in. x 6 in. x 8 ft. ACQ Pressure-Treated Decking Boards×5
- 4 in. x 4 in. ACQ Pressure-Treated Post, 12" Length×1
- 2 in. x 4 in. x 8 ft. ACQ Pressure-Treated Lumber×2
- #8 x 3" Deck Screws
- Deck Post Cap×1
- #8 x 2" Deck Screws
- Garden Soil
- 1"-thick scrap wood (centering support)
- Circular Saw or Band Saw
- Compound Miter Saw
- Drill/driver
- Drill bits (pilot, 3/8", and one sized to the post cap's rod)
- Protractor
- Tape Measure & Pencil
- Level
- 1"-Thick Scrap Wood
- Garden Trowel or Shovel
The build, step by step

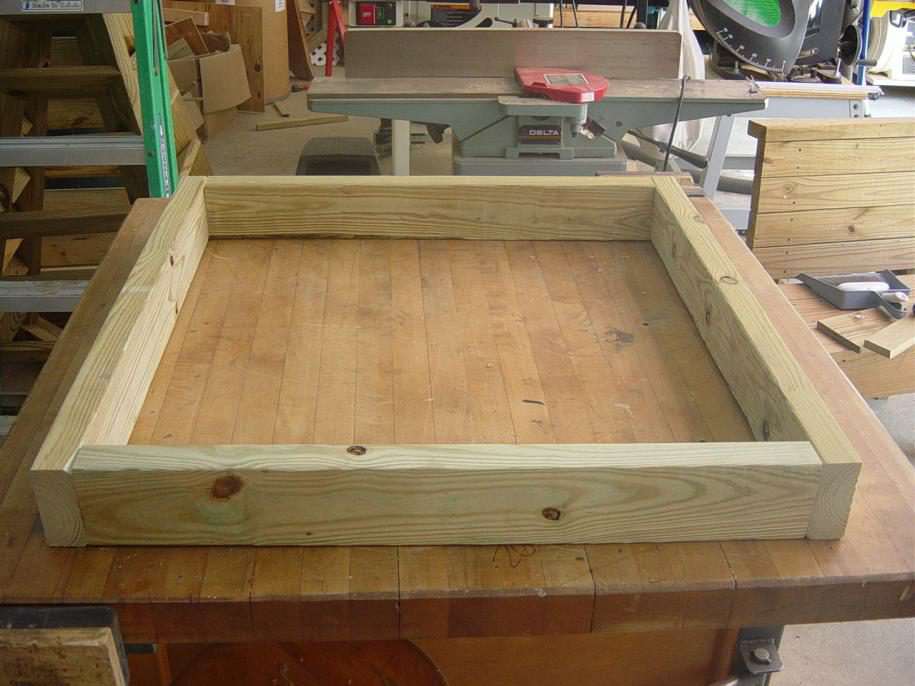

Cut and Assemble the Base Frame

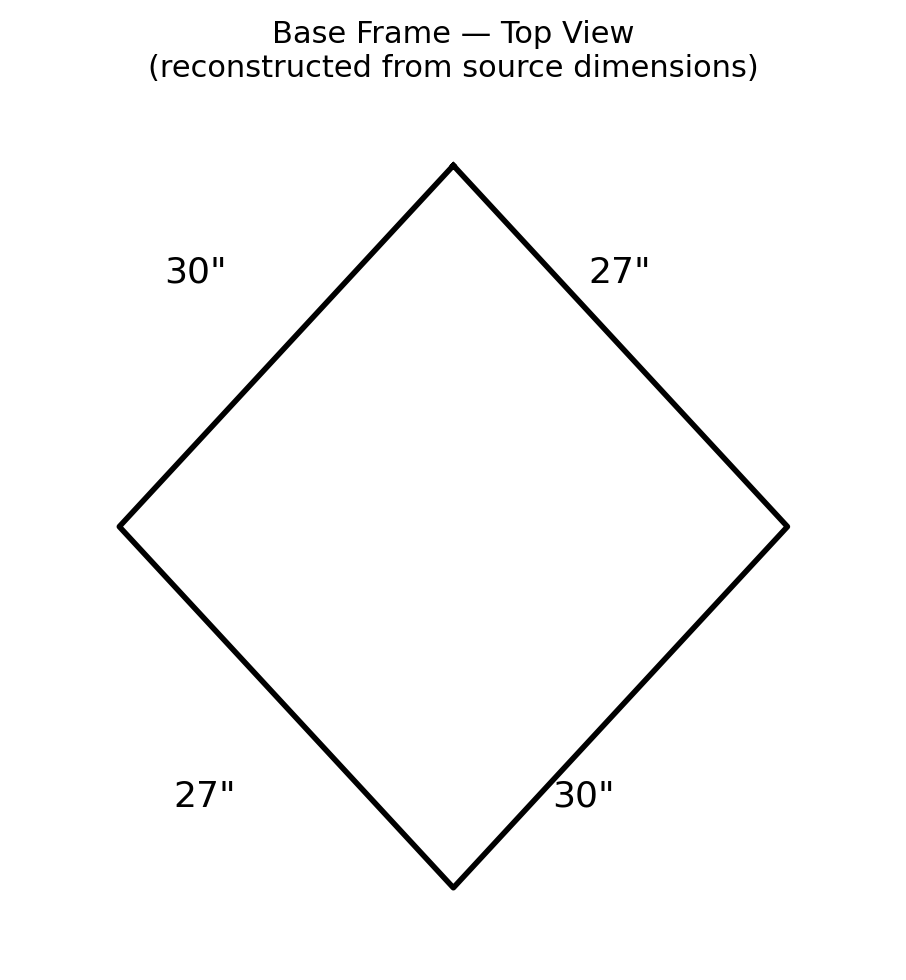

Cut 2 lengths of 2x4 to 30" and 2 lengths of 2x4 to 27". Fasten them together into a rectangular frame using #8 x 3" deck screws. Pre-drill all holes to prevent splitting. Note: the source diagram draws this frame rotated on its point for illustration, but gives no cut angle for these four pieces (unlike the cross-braces and support legs, which do specify angles) — this guide treats it as a standard square-cut rectangular frame, matching the finished photo below.

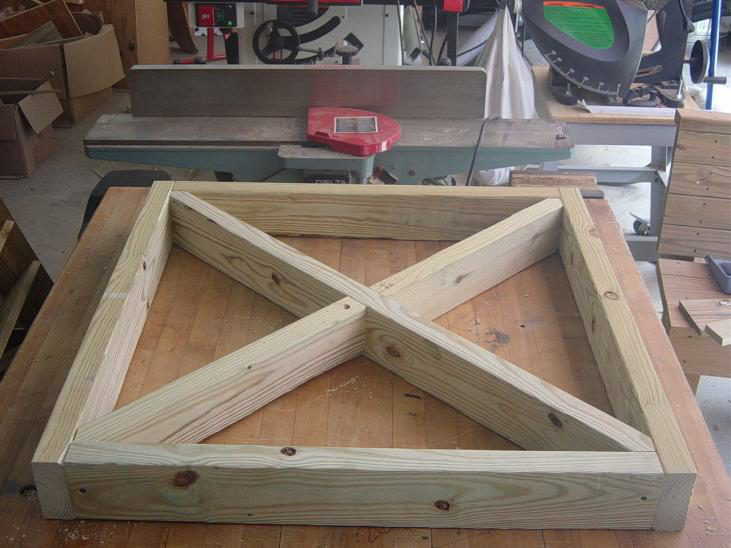

Cut the Cross-Braces

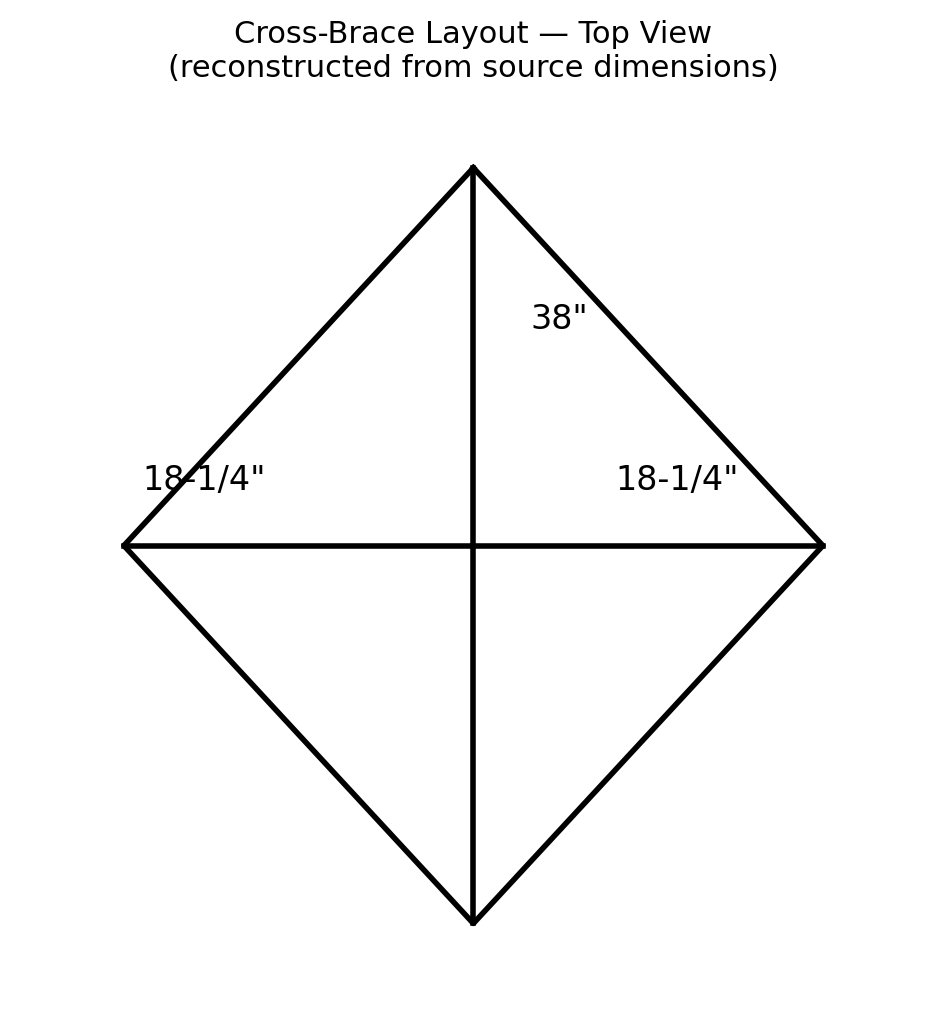

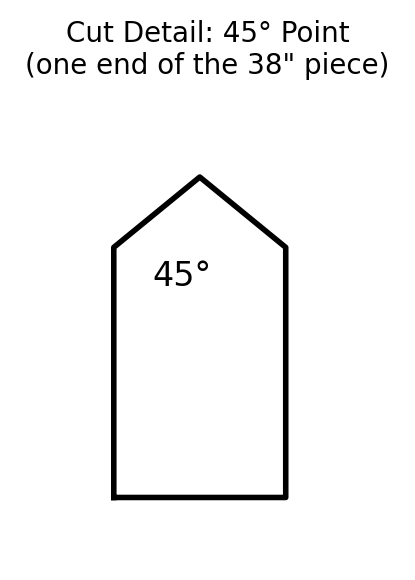

Cut a 2x4 to 38" long with a 45° angle at each end (see cut-detail inset). Cut 2 more lengths of 2x4 to 18-1/4", each with a 45° angle at one end. These three pieces will form an X-shaped brace inside the base frame — insert them as shown in the next step.
Fasten the Cross-Braces to the Frame
🔒 Unlocks with the planCut the Main Pyramid Support Legs
🔒 Unlocks with the planAttach Two Support Legs to the Center Post
🔒 Unlocks with the planStand and Attach the Remaining Two Support Legs
🔒 Unlocks with the planFasten the Supports to the Base and Secure the Cross-Members
🔒 Unlocks with the planCut the Shelf Boards
🔒 Unlocks with the planDetermine Screw Angles and Fasten the Shelf Corners
🔒 Unlocks with the planAssemble the Remaining Shelf Frames
🔒 Unlocks with the planInstall the Post Cap
🔒 Unlocks with the planAssemble the Shelves onto the Pyramid Frame
🔒 Unlocks with the planFill the Planter with Soil
🔒 Unlocks with the planSafety & disclaimers
- ACQ-treated lumber is more prone to splintering and chipping at a cut edge — wear eye protection and pre-drill every screw hole. (hazard)
- Use a clamp or stop block to hold short angled offcuts rather than hand-holding them near the blade. (hazard)
- Fully support both ends of the board and keep hands clear of the blade when cutting opposing compound angles. (hazard)
- Clamp the assembly to your work surface rather than hand-holding when pre-drilling and driving screws. (hazard)
- This step is top-heavy; a second person is strongly recommended to steady the assembly rather than attempting solo. (hazard)
- Start each pilot hole slowly to establish it before driving deeper; keep off-hand clear of the bit. (hazard)
- The assembled pyramid is awkward to flip alone — get a second person to help turn and steady it. (hazard)
- Standard shop practice — no specific safety concern noted. (info)
- Filling and tamping soil into stacked tiers involves repeated bending and lifting — use good lifting posture and take breaks. (hazard)
Questions builders ask
What type of lumber is specified?
ACQ pressure-treated lumber for posts, supports, and decking boards as listed in the materials table.
Are specific screw quantities provided?
No — screw quantities are not specified by the plan and are flagged as missing.
What saws are needed for angled cuts?
A compound miter saw is recommended for the 45° and compound bevel/angle cuts; a circular or band saw is used for square cuts.
How difficult is this project?
The plan lists it as an intermediate-level woodworking project involving compound cuts and multi-person lifting.
Is soil quantity specified?
No — soil type and quantity are not specified and are flagged as missing.
